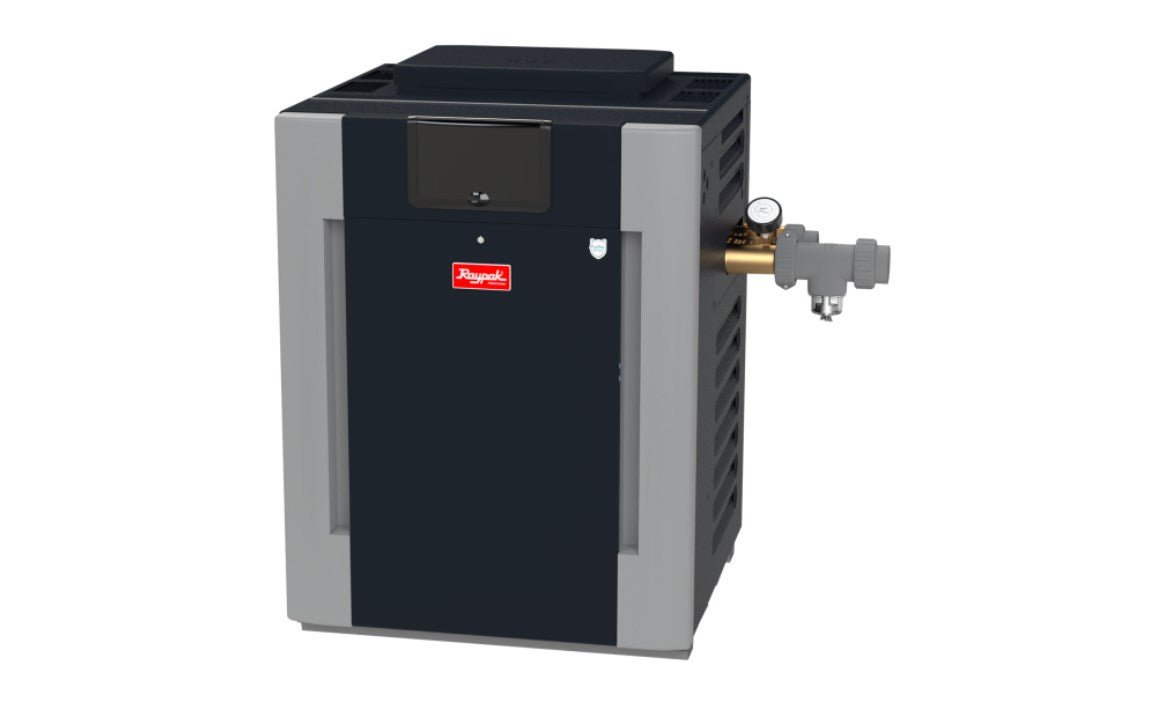

  • Front view of Raypak 009854 digital ASME gas heater
1 1

Raypak 206A Natural Gas Digital Cast Iron Pool and Spa Heater 199K BTU 6-9K Product #:RAY-15-9854 009854

Raypak 206A Natural Gas Digital Cast Iron Pool and Spa Heater 199K BTU 6-9K Product #:RAY-15-9854 009854

$2,368.11
$2,368.11 $2,368.11
Sale Sold out
Shipping calculated at checkout.
Raypak Pool Equipment

ASME-certified 199,500 BTU commercial pool heater with digital controls, copper tubing, and high-altitude compatibility.
Product Details

The Raypak 009854 ASME-certified natural gas heater delivers 199,500 BTUs of powerful performance for commercial pools and spas.

This high-altitude model is engineered to operate reliably at elevations from 6,000 to 9,000 feet.

It features a digital electronic control panel for precise temperature management and simplified operation.

With a copper heat exchanger and cast iron/glass headers, the unit ensures long-lasting corrosion resistance.

Certified to the ANSI Z21.56 standard, it meets strict commercial and ASME pressure vessel codes.

AI Review Summary ✨

⭐⭐⭐⭐⭐
Customers love the high-altitude compatibility of this model, noting that it performs consistently in mountainous regions.

Reviewers highlight the durability of the copper tubing and cast iron/glass headers under heavy commercial use.

Many pool professionals appreciate the simplicity and precision of the digital control panel.

Its strong heating power and ASME certification make it a go-to for hotels, fitness centers, and commercial spas.
Features
  • 199,500 BTU input for fast, efficient heating
  • ASME certified for commercial-grade performance
  • Digital electronic controls for easy, accurate adjustments
  • Designed for elevations from 6,000 to 9,000 feet
  • Copper heat exchanger resists corrosion and scale
  • Cast iron and glass headers for enhanced durability
  • Certified to ANSI Z21.56 pool heater standard
  • Stackless outdoor top and indoor drafthood compatible
  • Natural gas fuel source with NPT gas connections
  • Built to perform in commercial aquatic environments
Specifications
  • Brand: Raypak
  • Model Number: 009854
  • Application: Pool, Spa
  • BTU Input: 199,500 BTU
  • Burner Orifice Size: #52
  • Cabinet Depth: 28 inch
  • Cabinet Height: 38 inch
  • Cabinet Width: 20 inch
  • Fuel Type: Natural Gas
  • Control Type: Digital Electronic
  • Tubing Material: Copper
  • Header Material: Cast Iron, Glass
  • Flow Rate Max: 125 GPM
  • Flow Rate Min: 125 GPM
  • Flue Diameter: 6 inch
  • Voltage: 115V, 230V
  • Gas Connection: 0.75 inch NPT
  • Elevation Range: 6,000 – 9,000 ft
  • Green Product: Yes
  • Standards Approvals: ASME Certified, ANSI Z21.56
  • Shipping Dimensions: 43 x 26.25 x 31 inch
  • Each Product Weight: 223 lbs
  • UPC Code: 840891013655
User Guides
Frequently Asked Questions

Q: Is this unit suitable for use at high altitudes?
Yes, this heater is specifically designed for operation between 6,000 and 9,000 feet above sea level.

Q: What makes this heater ASME certified?
It meets ASME pressure vessel standards required for commercial applications exceeding 200,000 BTU.

Q: Can it be installed both indoors and outdoors?
Yes, it features a stackless outdoor top and is compatible with an indoor drafthood for flexible installation.
