• High-efficiency single-phase motor for closed coupled pumps.
1 1

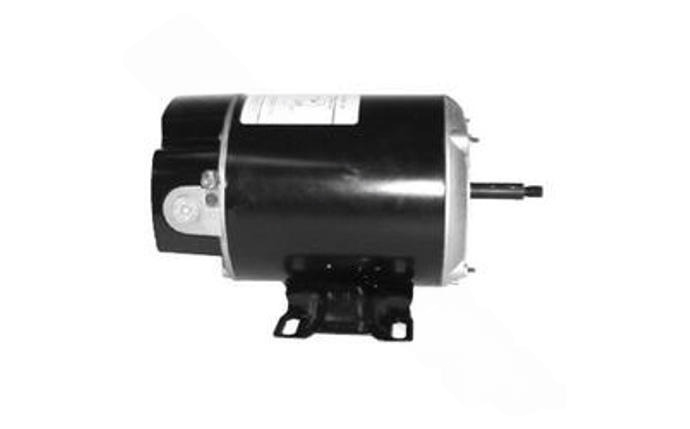

U.S. MOTORS EEQ750 Close Coupled EQ Series® ODP Replacement Pump Motor 1PH 7.5HP 230V

U.S. MOTORS EEQ750 Close Coupled EQ Series® ODP Replacement Pump Motor 1PH 7.5HP 230V

$2,770.99
$3,326.99 $2,770.99
Sale Sold out
Shipping calculated at checkout.
Pool Pump Motors

High-performance pump motors designed for efficiency, durability, and reliable operation in commercial and industrial settings.
Product Details

The U.S. MOTORS EEQ750 and UJ20P2DP pump motors offer reliable, high-performance solutions for various pumping applications. These motors are designed to meet the demanding requirements of commercial and industrial environments.

The EEQ750 model features a 7.5HP, single-phase, 230V motor, ideal for EQ Series® Closed Coupled Pumps. Its open drip-proof design and permanently lubricated ball bearings ensure efficient and long-lasting performance.

The UJ20P2DP model is a 20HP, three-phase, 208-230/460V motor, perfect for centrifugal pumps with a directly mounted impeller. It has a TEFC (Totally Enclosed Fan Cooled) design, offering protection in damp, dusty, or dirty environments.

Both motors are built for premium efficiency, providing durable construction and full-service factor capabilities. They are engineered for optimal performance, reducing maintenance needs while enhancing pump functionality.

AI Review Summary ✨

⭐️⭐️⭐️⭐️⭐️ Customers appreciate the robust build and reliable performance of these pump motors. They highlight the efficiency and durability as standout features.

Many users value the smooth operation and reduced maintenance requirements, especially in harsh environments. The motors' ability to withstand moisture, dust, and debris is highly praised.

The power output meets expectations, making these motors suitable for various commercial and industrial applications. Users also appreciate the straightforward installation process.

Affordability is a key benefit noted by many reviewers. Compared to other high-performance models, these motors deliver excellent value for money.
Features
  • Premium Efficiency - Minimizes energy consumption, maximizing output.
  • Durable Construction - Built for long-lasting use in challenging environments.
  • Versatile Applications - Ideal for EQ Series® closed coupled and centrifugal pumps.
  • Maintenance-Free Bearings - Permanently lubricated for smooth, continuous operation.
  • Reliable Motor Protection - TEFC and ODP designs shield from dust, moisture, and debris.
Specifications
  • Brand U.S. MOTORS
  • Ambient Temperature 40 degrees Celsius
  • Shipping Dimensions 26.5 x 16.5 x 18.5 inch
  • Amps High Speed 30.4
  • Amps Low Speed 30.4
  • Bearing Type Ball
  • Color Black
  • Duty Cycle Continuous
  • Each Product Weight 133.25 pound
  • Efficiency Group Premium
  • Frequency Rating (Hz) 60
  • Horsepower 7.5 horse power
  • Insulation Class F
  • Length Less Shaft 16.13 inch
  • Master Carton Quantity 1
  • Minimum Sell Quantity1
  • Motor Enclosure Type Open Drip Proof
  • Motor Frame Size 213JMZ
  • Motor Speed 1-Speed
  • Pallet Quantity 1
  • Phase Single
  • Product Weight 139 pound
  • RPMs Max 3600
  • RPMs Min 3600
  • Service Factor 1.15
  • Shaft Diameter1 inch
  • Shaft Length 4.25 inch
  • Shaft Material303 Stainless Steel
  • Voltage 230V
  • Application Pool, Spa
  • Commercial, Residential, or Professional Commercial
  • Green or Energy Efficient Product True
  • Motor Rating Full-Rated
  • Nominal Efficiency %87
  • Shaft Height 5.25 inch
  • UPC Code786382097042
Frequently Asked Questions

Q: Can these pump motors handle continuous operation?

A: Yes, both the EEQ750 and UJ20P2DP are designed for continuous operation with features like efficient cooling and durable construction.

Q: Are these motors suitable for outdoor environments?

A: The UJ20P2DP’s TEFC design is specifically made to withstand damp, dusty, or dirty conditions, making it suitable for outdoor or harsh environments.

Q: Do these motors require frequent maintenance?

A: No, both motors feature permanently lubricated ball bearings, reducing maintenance and ensuring smooth performance over time.
