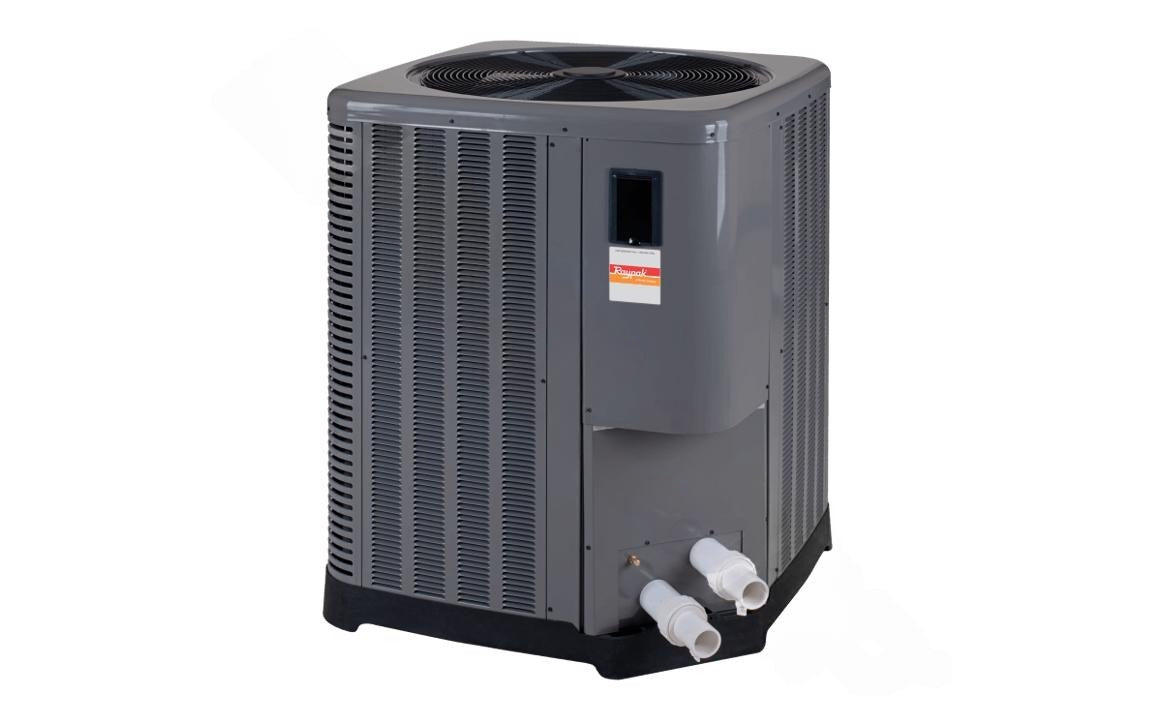

  • Front view of Raypak 156A digital propane pool heater
1 1

Raypak 14786 P-R156A-EN-C 156A Digital Electronic Liquid Propane Heater

Raypak 14786 P-R156A-EN-C 156A Digital Electronic Liquid Propane Heater

$2,247.99
$2,698.99 $2,247.99
Sale Sold out
Shipping calculated at checkout.
Raypak Pool Equipment

Raypak P-R156A propane heater offers powerful digital performance and corrosion-resistant durability for above ground pools and spas.
Product Details

The Raypak P-R156A-EP-C delivers 150,000 BTU of reliable heating power, designed specifically for above ground pools and spas.

Its digital control system allows for easy temperature adjustments and includes built-in diagnostics for system monitoring.

The copper heat exchanger and polymer headers ensure optimal heat transfer while resisting corrosion from pool chemicals.

A powder-coated metal cabinet and stainless steel burners protect the unit from rust and seasonal wear.

Efficient and compact, this propane heater exceeds federal and state energy performance standards.

AI Review Summary ✨

⭐⭐⭐⭐⭐
Raypak's 156A propane heater earns praise for its compact size, fast heating, and digital precision.

Customers enjoy the clear control panel, which simplifies temperature management and provides easy troubleshooting.

Its rugged build stands up to outdoor conditions, and the propane efficiency helps save on fuel costs.

The included components make installation quick, and its performance delivers consistent water comfort all season.
Features
  • 150K BTU liquid propane heater for above ground pools/spas
  • Digital control panel with diagnostic functions
  • Copper heat exchanger and polymer headers for longevity
  • Stainless steel burners and powder-coated exterior
  • Compact footprint for easier installation
  • Flow rate: 20–70 GPM
  • Electronic ignition with built-in safety features
  • Indoor and outdoor installation options
  • Meets or exceeds federal energy standards
  • CSA and ANSI certified
Specifications
  • Brand: Raypak
  • Model: P-R156A-EP-C
  • BTU Input: 150,000
  • Fuel Type: Liquid Propane
  • Application: Above Ground Pool, Spa
  • Use Type: Residential
  • Control Type: Digital Electronic
  • Voltage: 120V / 240V
  • Circuit Requirements: 2A Min, 4A Max Breaker
  • Flow Rate: 20–70 GPM
  • Water Connections: 2" Slip (inlet and outlet)
  • Gas Connection: ½" NPT
  • Tubing Material: Copper
  • Header Material: Polymer
  • Housing: Dark gray, powder-coated metal
  • Ignition Type: Electronic
  • Cabinet Dimensions: 27.5" H x 12" W x 27" D
  • Indoor Drafthood Height: 55.5"
  • Indoor Vent Pipe Diameter: 6"
  • Weight: 125 lbs
  • Certifications: CSA, ANSI Certified
  • UPC Code: 840891035879
  • Includes:
  1. 2" CPVC unions with O-rings (2)
  2. Gas line finish flange
  3. Bonding lug & screw
  4. 3-ft, 3-prong power cord
  5. Installation & operation manual
User Guides
Frequently Asked Questions

FAQs:
Q: Can this heater be used indoors?
Yes, it is compatible with a 6" indoor drafthood for indoor installations.

Q: What size pool is this best suited for?
This 150K BTU unit is ideal for small to medium-sized above ground pools or spas.

Q: Is this a low NOx compliant model?
No, this model does not meet low NOx emission requirements. Check for EN models if needed in your area.
Warranty
Warranty URL: https://www.raypak.com/registration_warranty/
View full details
Authorized Retailer US Shipping
Disclaimer:
Pool heaters and heat pumps are not returnable once installed or connected. Double-check fuel type, voltage, and sizing before installation.
