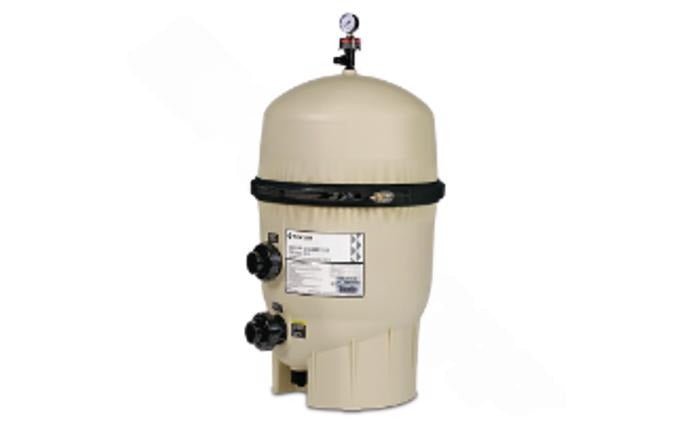

PENTAIR 320 SqFt Clean & Clear® Plus Cartridge Filter EC-160340

⭐⭐⭐⭐⭐
Customers consistently praise the filter's exceptional build quality and durable fiberglass-reinforced construction that withstands years of pool maintenance.

Users highlight the impressive water clarity achieved through the 320 sq ft filtration area and efficient four-cartridge design.

Many appreciate the easy maintenance with simple cartridge rinsing and convenient tension control clamp for quick access.

Reviewers note excellent value for money with reliable performance and reduced water consumption compared to sand filters.

Pool owners love the straightforward installation and consistent flow rates that keep their pools crystal clear.

Corrosion-Resistant Tank: Injection-molded fiberglass-reinforced polypropylene construction ensures superior strength and long-term reliability in pool environments.

Four-Cartridge Design: Nonwoven polyester cartridges provide 320 sq ft filtration area that traps more dirt and extends time between cleanings.

No Backwashing Required: Simply remove and rinse cartridges with a garden hose, significantly reducing water consumption compared to traditional filters.

Continuous Air Relief: Internal high-flow air bleed system prevents air buildup to maintain peak filter performance and efficiency.

Easy Maintenance Access: Tension control clamp allows quick access to cartridges and internal components for simplified service routines.

Complete Drain System: 1.5-inch drain port ensures thorough winterization and easy cleaning access when needed.

Balanced Hydraulic Flow: Optimized design maintains consistent water flow and pressure throughout the filtration system.

NSF Certified: Meets industry standards for safety and performance in pool and spa applications.

• Brand: Pentair
• Model: EC-160340 (CCP320)
• Application: Residential pool and spa
• Filtration Area: 320 square feet
• Flow Rate: 120 GPM (Residential)
• Maximum Flow: 150 GPM (not recommended above)
• Tank Material: Fiberglass-reinforced polypropylene
• Cartridge Design: Four nonwoven polyester cartridges
• Plumbing Size: 2-inch connections
• Drain Port: 1.5-inch 100% clean-out
• Dimensions: 22" L x 22" W x 39" H
• Weight: 69-70 pounds
• Operating Pressure: 50 PSI maximum
• Water Temperature: 104°F maximum
• Turnover Capacity: 57,600 gal (8hr), 72,000 gal (10hr), 86,400 gal (12hr)
• Warranty: 1-year manufacturer's limited
• Certifications: NSF listed, ANSI Standard 50 certified
• Vertical Clearance: 62 inches required

Q: How often do I need to clean the cartridges in this filter?
A: The cleaning frequency depends on pool usage and environmental factors, but the 320 sq ft filtration area typically extends cleaning intervals to 4-6 weeks during peak season, with simple garden hose rinsing required instead of backwashing.

Q: What size pool is this filter suitable for?
A: This filter is designed for residential pools up to 86,400 gallons with a 12-hour turnover rate, making it ideal for medium to large residential pools, with specific capacities of 57,600 gallons (8hr), 72,000 gallons (10hr), and 86,400 gallons (12hr).

Q: Is professional installation required for this filter?
A: While experienced DIYers can install this filter with proper plumbing knowledge, professional installation is recommended to ensure correct 2-inch plumbing connections, proper positioning with 62-inch vertical clearance, and optimal system performance.
