Pool Antifreeze for a Heat Pump Bypass and Three Return Lines: Exact Amounts

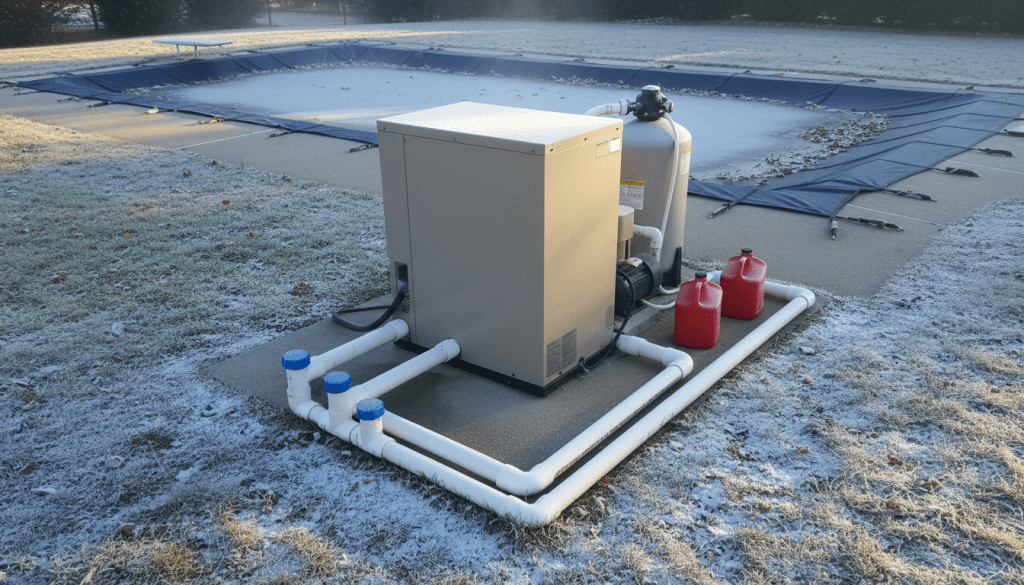

You blew out the lines, you plugged the returns, and then you stood at the equipment pad staring at a bypass loop snaking around the heat pump and three separate return lines running in different directions. How much antifreeze do you actually need, and does the bypass count as its own line? It is the kind of question that never has a clean answer on the bottle.

For a pool with a heat pump bypass loop and three return lines, plan on 4 to 5.5 quarts of non-toxic propylene glycol antifreeze in total: roughly 0.5 to 1 quart for the bypass section and 1 to 1.5 quarts per return line. The rest of this article walks through how to calculate your exact pipe volumes, the right order to apply antifreeze, and the common mistakes that leave water trapped where you do not want it.

Why a Heat Pump Bypass Changes the Math

A standard pool setup routes water from the pump through the filter, then through the heater, and out to the returns. A heat pump bypass adds a short parallel loop, usually a Y-fitting or a pair of valves, so you can isolate the heat pump without shutting down water flow. That bypass section is its own length of pipe, and it holds water just like any return line does. If you blow out the main line and forget the bypass, water sits in that loop all winter.

Most bypass loops run 3 to 6 feet of 1.5-inch or 2-inch PVC. A 5-foot section of 1.5-inch pipe holds about 0.5 quarts of water. A 5-foot section of 2-inch pipe holds closer to 0.8 quarts. After a blow-out, some water clings to the walls and low spots, so even a successful blow-out leaves a thin residual layer. That is why antifreeze still belongs in the bypass, even after you run the compressor through it. If you are researching pool heat pump setups and want to understand how bypass loops are configured, browsing Pool Heat Pumps will show you how different units are typically plumbed.

How to Calculate Antifreeze by Pipe Volume

The formula is simple. Multiply the internal cross-sectional area of the pipe by its length, then convert to quarts. You do not need to be precise to the milliliter; you need to be close enough that every low spot gets covered.

• 1.5-inch pipe: Internal diameter is about 1.61 inches. One foot of pipe holds roughly 0.10 quarts of liquid.
• 2-inch pipe: Internal diameter is about 2.07 inches. One foot holds roughly 0.17 quarts.

Here is a worked example. Say your three return lines each run 20 feet of 1.5-inch pipe from the equipment pad to the jet fittings. Each line holds about 2 quarts (20 feet times 0.10 quarts per foot). You need to fill each line to the point where antifreeze is visibly present at the return fitting before you cap it, so count on 1 to 1.5 quarts of actual antifreeze per line after the blow-out has removed most of the standing water. Three lines at 1.25 quarts each equals 3.75 quarts. Add 0.75 quarts for the bypass loop. Your total is about 4.5 quarts, so buying two 1-gallon jugs (8 quarts total) gives you enough product with a comfortable safety margin.

Step-by-Step: Adding Antifreeze to a Heat Pump Bypass Setup

1. Step 1: Drain and blow out the main equipment loop. Drain the heat pump, the filter, and the pump housing. Then use a compressor (at least 4 CFM at 30 PSI for 1.5-inch lines) to blow out the plumbing from the pump toward the returns. Keep the compressor running on each line until no water mists out of the return jet.
2. Step 2: Isolate the bypass loop. Close the bypass valves and blow air through the bypass section separately if your configuration allows it. If the bypass is a fixed Y-fitting without isolation valves, leave the main line open and blow air back through the bypass from the equipment side with the heat pump disconnected.
3. Step 3: Pour antifreeze into the skimmer with the pump off. Remove the skimmer basket, pour 1 quart of propylene glycol antifreeze directly into the skimmer throat, and let gravity pull it toward the pump. Do not run the pump. The goal is to coat the low spots in the suction side, not to push product through the system at speed.
4. Step 4: Apply antifreeze to the bypass loop. Open the lowest port on the bypass (a drain plug or a union fitting) and pour in 0.5 to 1 quart of antifreeze. Cap the port, then gently tilt or open any drain petcock on the loop to verify the antifreeze reaches the low point.
5. Step 5: Fill each return line from the equipment pad side. With a small funnel or a siphon hose, pour 1 to 1.5 quarts of antifreeze into each return line. Have a helper confirm that a small amount of pink or blue antifreeze reaches the pool-side fitting before you insert the winterizing plug. Cap each return plug snugly once antifreeze appears at the jet.
6. Step 6: Plug and label every port. Insert a rubber expansion plug into each return fitting and each skimmer. Label any line that connects to the bypass so whoever opens the pool in spring knows to clear antifreeze from that loop before restarting the heat pump.

Total Antifreeze Reference Table

Why These Numbers Matter for Your Decision

The table above assumes a standard suburban pool with three returns running an average distance. If your longest return line runs 35 feet or more, bump that line's amount up to 2 quarts. If your bypass uses 2-inch pipe throughout, add another 0.25 quarts for the larger volume. The skimmer column is intentionally conservative; a single quart coats the throat and the first few feet of suction pipe, which is where freeze damage tends to start.

AquaDoc's non-toxic pool antifreeze is one option pool owners use for this kind of detailed line-by-line application because it comes in measured quart-size bottles, which makes it easy to track exactly how much goes into each section rather than free-pouring from a gallon jug and guessing.

One mistake worth calling out: many people skip antifreeze in the bypass because they assume the blow-out covered it. It rarely does completely. A bypass loop has elbows and low-spot fittings that trap residual water, and those are exactly the joints that crack first in a hard freeze below 20 degrees Fahrenheit. The half-quart it takes to protect the bypass is cheap insurance against a cracked PVC fitting in March.

Also, once your pool is properly closed and protected for winter, the right cover makes a real difference in keeping debris out and reducing evaporation losses all season. Our guide to the best pool covers for inground pools walks through the options so you can match the right cover to your pool shape and budget.

Frequently Asked Questions

How much antifreeze does a pool with three return lines need?

A pool with three standard return lines needs roughly 1 to 1.5 quarts of non-toxic propylene glycol antifreeze per line after blowing out standing water, for a total of 3 to 4.5 quarts just for the returns. The actual amount depends on pipe diameter and run length from the equipment pad to each jet, so longer runs require more product.

Do you need to put antifreeze in a heat pump bypass loop?

Yes. If your heat pump bypass loop is plumbed with PVC or CPVC and holds standing water after blow-out, it needs antifreeze. A typical 4-foot bypass section holds less than a quart, but any water left behind in a freeze zone can crack fittings at temperatures below 20 degrees Fahrenheit, so the small amount of product is worth it.

What kind of antifreeze is safe for a swimming pool?

Use only non-toxic propylene glycol antifreeze rated for potable or recreational water systems. Never use ethylene glycol automotive antifreeze in a pool because it is toxic to swimmers and will contaminate the water. Most pool-safe antifreeze bottles are clearly labeled "non-toxic" or "propylene glycol."

Can you skip the antifreeze if you blow out your pool lines with a compressor?

You can skip antifreeze on a return line only if you are fully certain the blow-out removed every drop of water and the line ends are plugged airtight before any freeze event. Most professional pool closers still add a quart per line as insurance, because even a small residual pocket of water is enough to crack PVC at temperatures below 20 degrees Fahrenheit.

How much antifreeze does a pool with a heat pump bypass and three returns need in total?

For a typical setup with a heat pump bypass loop and three return lines, the total falls between 4 and 5.5 quarts of non-toxic propylene glycol antifreeze. Add 1 quart for the skimmer and suction side and you are looking at 5 to 6.5 quarts total. Buy two 1-gallon jugs so you have enough to do the job correctly without running out mid-close.

For a pool with a heat pump bypass and three return lines, plan on 5 to 6.5 quarts of non-toxic propylene glycol antifreeze total, applied line by line after a thorough compressor blow-out. Get the bypass loop, never treat it as an afterthought.

If you have questions about your specific setup or want to make sure you have the right products before closing day, we are happy to help. AquaDoc carries winterizing chemicals, plugs, and accessories for all kinds of pool configurations, and our team can point you toward exactly what your setup needs.
