Hot Tub Antifreeze for a 6-Person Spa With a Waterfall and 8 Jet Lines: Exact Amounts

Winterizing a hot tub sounds simple until you start counting the lines. A 6-person spa with a waterfall feature has plumbing running in directions a basic 4-jet tub never sees, and if you guess at antifreeze quantities, you will almost certainly leave at least one line unprotected.

A 6-person hot tub with a waterfall feature and 8 jet lines needs roughly 2 to 2.5 gallons of propylene glycol antifreeze for a thorough winterization, assuming you blow out the lines first. This article breaks down exactly where that volume goes, line by line, so you can account for the waterfall supply, the jet manifolds, the pump housing, and the footwell drain without second-guessing yourself.

Why the Waterfall Feature Changes the Math

Most antifreeze calculators are built around a standard tub: one pump, a handful of jets, a circulation line, and a drain. A waterfall complicates that picture because it is fed by its own dedicated supply line, usually branching from a diverter valve on the main pump or running off a small secondary pump. That line can hold anywhere from 0.5 to 1.5 quarts of water depending on how far the waterfall sits from the equipment bay. If you winterize the jet side perfectly and forget the waterfall line, a single overnight freeze can split it, and spillover waterfall line repairs often run $200 to $500 in labor plus parts. For more background on what a waterfall replacement involves, the breakdown of how to winterize a hot tub step by step is worth reading before you start.

Step 1: Drain and Flush the Tub Completely

Before antifreeze goes anywhere, drain every drop of water from the shell. Open the bottom drain valve and let it run until the shell is empty, then run the jets briefly on low speed to push residual water out of the plumbing while the tub is still draining. Finish by using a shop vac or a small compressor to blow out each jet port for 10 to 15 seconds. Getting the bulk water out means your antifreeze is actually protecting the lines, not diluting itself in standing water.

Step 2: Account for Each Jet Line

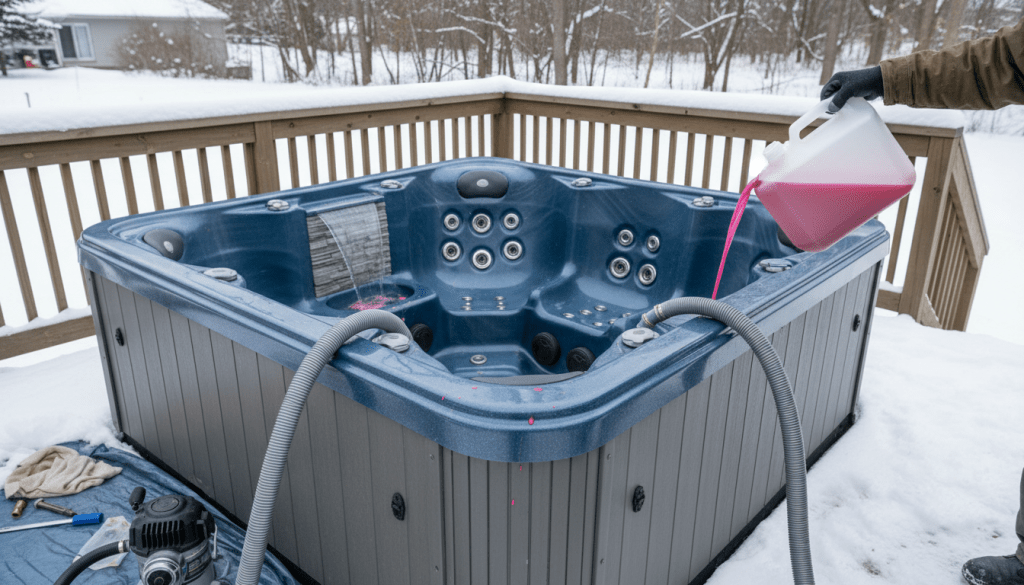

Eight jet lines is the actual count here, and each one needs individual attention. After blowing out, pour antifreeze directly into each jet port. The standard volume is 1 quart per jet line for a tub that has been properly blown out. For 8 lines, that is 2 gallons total, or roughly 8 quarts. Do not pour all 2 gallons into one place and assume it distributes evenly through the manifold. Some manifold branches sit higher than others, and gravity will not cooperate. Go port by port.

Here is a worked example: your tub has 8 jet ports split between two therapy seats, a corner lounger, and the footwell. You blow out each port, then pour 1 quart of propylene glycol antifreeze into each. That is 8 quarts total, which equals exactly 2 gallons for the jet circuit. Simple, but only if you count every port and do not skip the low-flow footwell jets at the bottom of the shell.

Step 3: Protect the Waterfall Supply Line

The waterfall feature adds 1 to 1.5 quarts to your total, depending on line length. If the waterfall trough sits within 3 feet of the equipment cabinet, 1 quart is enough. If your waterfall is on the far side of the tub or has an elevated spillover panel that requires a longer run, use 1.5 quarts to be safe. Pour the antifreeze into the waterfall inlet port, the diverter valve access point, or directly into the pump housing if the waterfall runs off a secondary circulation pump. Let it sit for two minutes so it settles into the low points of the line before you cap everything off.

The winterization process outlined by Polynesian Pool and Spa specifically calls out accessory plumbing like waterfalls and foot domes as the lines most commonly overlooked during a DIY close. That oversight is exactly what drives freeze damage claims every spring.

Step 4: Handle the Pump Housing and Circulation System

After the jet lines and waterfall, the pump housing is the third zone that needs antifreeze. Even after blowing out, the volute (the curved chamber inside the pump body) can hold a cup or two of water in its low point. Pour 1 quart of propylene glycol directly into the pump access port or into the pump wet end through the drain plug. If your tub has both a main therapy pump and a separate circulation pump, each pump housing gets its own quart. For a 6-person tub with one main pump and one circulation pump, that is 2 additional quarts, bringing the running total to approximately 10 to 10.5 quarts (2.5 to 2.6 gallons).

Complete Antifreeze Volume Summary

Why These Numbers Matter for Your Decision

The table shows a realistic range of 2.75 to 2.9 gallons for this specific configuration. Rounding up to 3 gallons when you buy is the right call: antifreeze stores indefinitely in a sealed jug, and being short on a cold November evening means a second trip to the store or a gamble on an unprotected line overnight. Always buy one extra quart beyond your estimate.

One common mistake is treating the tub like a pool and buying a large volume of antifreeze on the assumption that "more is better." Excess antifreeze in a hot tub does not provide extra protection once the lines are saturated. Propylene glycol antifreeze rated for plumbing is typically effective down to 0°F at full concentration. Diluting it in standing water reduces that protection, which is why a thorough blow-out before antifreeze application matters more than doubling the antifreeze volume. Resources like the Zager Pool and Spa winterizing guide and the Sunny's Pools winterization walkthrough both emphasize draining fully before any antifreeze step for exactly this reason.

Another mistake: skipping the antifreeze on lines you think are "self-draining." Jet manifolds in 6-person tubs are rarely perfectly sloped, and low spots in PVC plumbing hold water even after a solid blow-out. Trust the quart-per-port method, not your assumptions about the slope of the plumbing.

Sanitizer Before You Close

Before sealing the cover for winter, balance your water chemistry and add a closing dose of sanitizer. A pH between 7.4 and 7.6, alkalinity between 80 and 120 ppm, and a chlorine or bromine level at the high end of the normal range (5 to 10 ppm for bromine, 3 to 5 ppm for chlorine) will prevent biofilm and scale from building up inside any water that remains in the shell during the closed season. We make the Pool Closer all-in-one winter closing kit specifically for this step: it combines the balancing and sanitizing chemicals you need at closing so you are not hunting down four separate products. If you are also thinking about whether to leave your tub powered through the cold months, the guide on hot tub maintenance in extreme cold and snow lays out the tradeoffs clearly.

Frequently Asked Questions

How much antifreeze does a 6-person hot tub need for winter?

A standard 6-person hot tub with 8 jet lines and a waterfall feature typically needs 2.75 to 3 gallons of propylene glycol antifreeze in total. That covers the jet lines (1 quart each), the waterfall supply line (1 to 1.5 quarts), and the pump housing or housings (1 quart each). Buying 3 gallons gives you a small buffer without waste.

Do I need antifreeze in every jet line of my hot tub?

Yes, every jet line needs protection if temperatures at your location drop below 32°F and the tub will sit unpowered. A single unfrozen line can crack and cause hundreds of dollars in repair costs. Pour at least 1 quart of propylene glycol antifreeze into each jet port after blowing the lines out, port by port, not all at once through a single access point.

What type of antifreeze is safe for hot tubs?

Use only propylene glycol-based antifreeze rated for potable water or plumbing systems. Never use automotive ethylene glycol antifreeze in a hot tub: it is toxic and will contaminate the shell, jets, and any surface it contacts. Most spa-safe antifreeze products will say "non-toxic" and "propylene glycol" on the label.

Does a waterfall feature need antifreeze separately from the main jets?

Yes. A spillover waterfall runs on its own dedicated supply line fed from a diverter valve or secondary pump, and that line will not be reached by antifreeze you pour into the jet ports. After blowing it out, pour 1 to 1.5 quarts of propylene glycol directly into the waterfall inlet port or the pump housing access point to protect that specific line through winter. The Aqua Vision Pool 11-step winterizing guide includes this step explicitly because it is so often skipped during DIY close-ups.

Can I skip antifreeze if I blow out all the hot tub lines with an air compressor?

Blowing out lines removes the bulk of standing water, but it rarely clears every drop from low-lying elbows, manifold branches, and pump volutes. Using propylene glycol antifreeze as a follow-up step is the standard recommendation from spa service professionals for any tub in a climate where temperatures drop below freezing. Think of the blow-out as step one and the antifreeze as step two: both are needed, not either-or.

For a 6-person hot tub with a waterfall feature and 8 jet lines, buy 3 gallons of propylene glycol antifreeze, apply it port by port and line by line, and you will have every zone covered before the first hard freeze hits.

If you have questions about your specific setup or are not sure whether your tub has a secondary circulation pump, we are happy to help you figure it out. AquaDoc carries winter closing supplies sized for hot tubs and spas of every configuration, so you can get the right amount and close with confidence.
